| Brand | Colorful |
| Model | Colorful Battle-AX B760M-PLUS D5 V20 |
| Memory MHz | 6800 (OC)/ 6600 (OC)/ 6400 (OC)/ 6200 (OC)/ 6000 (OC)/ 5800 (OC)/ 5600 (OC)/ 5400 (OC)/ 5200 (OC)/ 5000 (OC)/ 4800MHz |
| Memory Channel | Dual |
| Memory Max | 192GB |
| Optane Memory Support | Not Available |
| Chipset Brand | Intel |
| Chipset | Intel B760 |
| Sockets Supported | LGA1700 |
| Built-in Processor | Not Available |
| Supported CPU | 12th / 13th / 14th Gen Intel Core, Pentium and Celeron processors. |
| Generation | 12th/13th/14th |
| Memory Type | DDR5 |
| Memory Slot | 4 |
| Memory Max. | 192GB |
| M.2/SSD Expansion Slot Details | 3 x M.2 (1 x M.2 support 2242/2280 M.2 SSD (PCIe 4.0 x4, CPU channel), 2 x M.2 support 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, PCH channel)) |
| Graphics | Integrated |
| Graphics Chipset | Integrated With Processor |
| Multi-GPU Support | Not Available |
| LAN Chipset | RTL8125 2.5Gbit |
| WiFi | Not Available |
| Bluetooth | Not Available |
| USB Port | 2 x USB 3.2 Gen 1 Type-A, 4 x USB 2.0 Type-A, 1 x USB Type-C |
| VGA Port | Not Available |
| DVI Port | Not Available |
| HDMI Port | 1 |
| SATA Port | 4 x SATA |
| Cable Management | Front |
| Heatsink | Yes |
| RGB Support | ARGB |
| RGB Connector | 2 5V 3-pin ARGB pins, 2 12V 4-pin RGB pins |
| Supported Operating System | Windows 7 / 8 / 8.1 / 10 / 11 |
| Body Color | Black |
| Form Factor | Micro-ATX |
| Approx_Power_Consumption | 60W |
| Approx. Power Consumption | 60W |
| Country Of Origin | China |
| Made in/ Assemble | China |
| Warranty Details | 3 year |

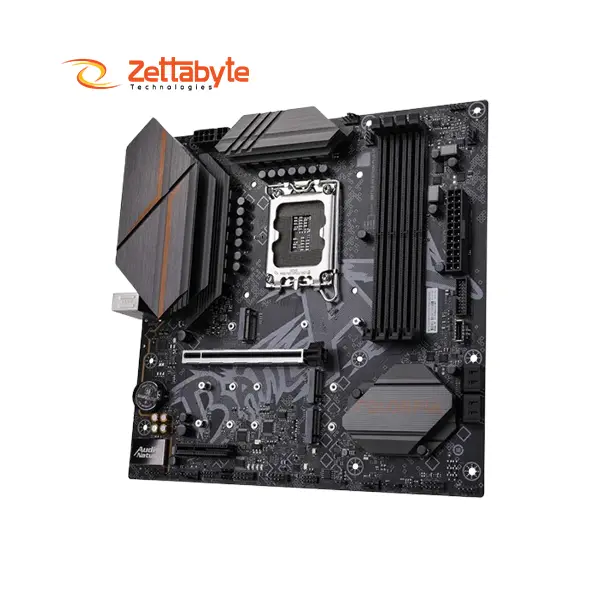

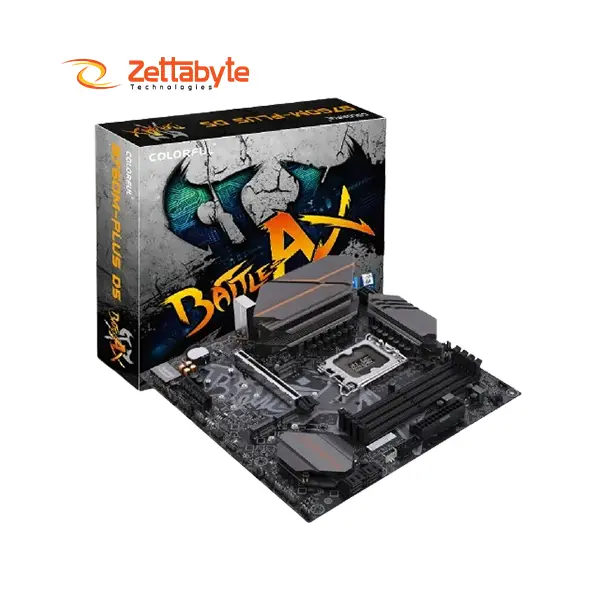

The Colorful BATTLE-AX B760M-PLUS D5 V20 High-Speed Performance Motherboard is the perfect choice for people looking for a reliable and high-speed platform for Intel's 12th, 13th, and 14th generation processors. With support for the LGA 1700 socket, this Colorful motherboard guarantees high-end performance with Intel Core, Pentium, and Celeron processors. Thanks to the Intel B760 chipset, up to 192 GB of DDR5 memory is achievable, and overclocking is supported at speeds reaching 6800 MHz. The Colorful motherboard offers an array of expansion slots, including a PCIe 5.0 x16 and PCIe 3.0 x4, thereby providing lots of flexibility to use different types of components and future-proofing itself for applications in gaming and content creation. Featuring robust cooling design and ease of use, this motherboard will make a fine candidate when one considers building high-performance gaming or workstation setups.

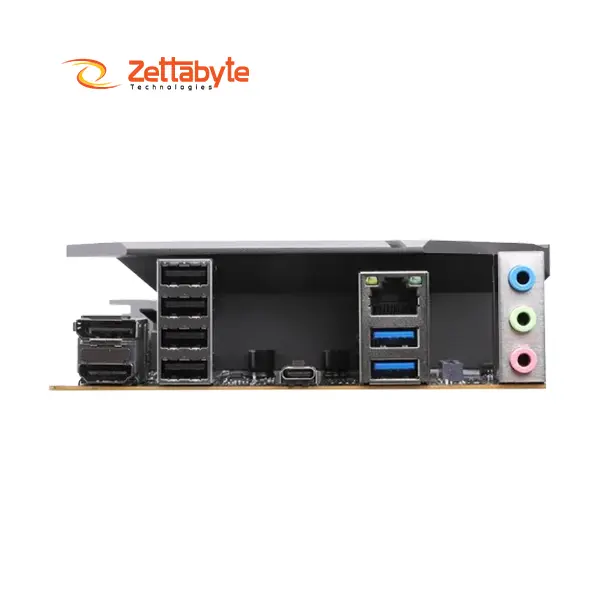

Colorful BATTLE-AX B760M-PLUS D5 V20 is filled with advancements in connectivity and storage real boon of three M.2 slots, which can handle PCIe 4.0 x4 speeds, and four SATA 6Gb/s ports for enough storage options. Expect 4K resolution at 60Hz owing to Intel HD Graphics integrated in conjunction with HDMI 2.0 and DisplayPort 1.2 interfaces. Add another feather in its cap with RAID 0, RAID 1, RAID 5, and RAID 10 options for authentic storage versatility. With a warranty coverage of three years, the Colorful motherboard is a dependable choice to opt for high-speed performance. Explore more with ZettaByte Technologies.
Are you looking for a reliable Technology Store in Bangladesh? Colorful BATTLE-AX B760M-PLUS D5 V20 Advanced Cooling Solution Motherboard for All Devices from Zettabyte Technologies. We provide 100% authentic products, the best prices, and home delivery. Purchase from your nearest Zettabyte store or order online from anywhere in Bangladesh. Enjoy peace of mind with our 14-day return policy. Order now and experience the Zettabyte difference.
The Colorful BATTLE-AX B760M-PLUS D5 V20 Dual M.2 Slots Motherboard price is ৳17,700. We have a huge collection of Colorful BATTLE-AX B760M-PLUS D5 V20 Optimized Connectivity Motherboard at the best price. Order today before the price increases!
