| Brand | Gigabyte |
| Model | Gigabyte B550M DS3H AC |
| Memory Type | DDR4 |
| Memory MHz | AMD Ryzen 5000 series (4266(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133MHz), AMD Ryzen 3rd Gen (4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133MHz), AMD Ryzen 3rd Gen with Radeon Graphics (4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133MHz) |
| Memory Channel | Dual |
| Memory Slot | 4 |
| Memory Max | 128GB |
| Optane Memory Support | Not Available |
| Chipset Brand | AMD |
| Chipset | AMD B550 |
| Sockets Supported | AM4 |
| Built-in Processor | Not Available |
| Supported CPU | AMD Ryzen 5000 Series/ 3rd Gen Ryzen with Radeon Graphics Processors |
| Generation | Not Applicable |
| Memory Type | DDR4 |
| Memory Slot | 4 |
| Memory Max. | 128GB |
| M.2/SSD Expansion Slot Details | 2 x M.2 (PCIe 4.0 x4/ x2, 2242/ 2260/ 2280/ 22110 & PCIe 3.0 x4/ x2, 2242/ 2260/ 2280) |
| Graphics | Integrated |
| Graphics Chipset | Integrated With Processor |
| Audio Chipset | Realtek Audio CODEC |
| LAN Chipset | Realtek GbE LAN chip |
| WiFi | Yes |
| Bluetooth | Bluetooth 4.2 |
| USB Port | 5 x USB 3.2 Gen 1, 5 x USB 2.0 |
| VGA Port | Not Available |
| DVI Port | 1 |
| HDMI Port | 1 |
| SATA Port | 4 |
| Cable Management | Front |
| Heatsink | Not Available |
| RGB Support | ARGB |
| RGB Connector | 2 x RGB LED strip headers, 2 x addressable LED strip headers |
| Approx. Power Consumption | 60W |
| Form Factor | Micro-ATX |
| Supported Operating System | Windows 10 |
| Body Color | Black |
| Form Factor | Micro-ATX |
| Approx_Power_Consumption | 60W |
| Approx. Power Consumption | 60W |
| Country Of Origin | Taiwan |
| Made in/ Assemble | China |
| Warranty Details | 3 year |

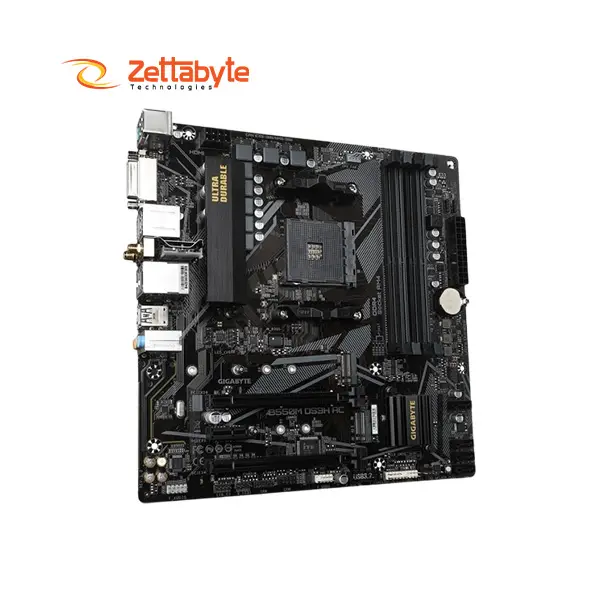

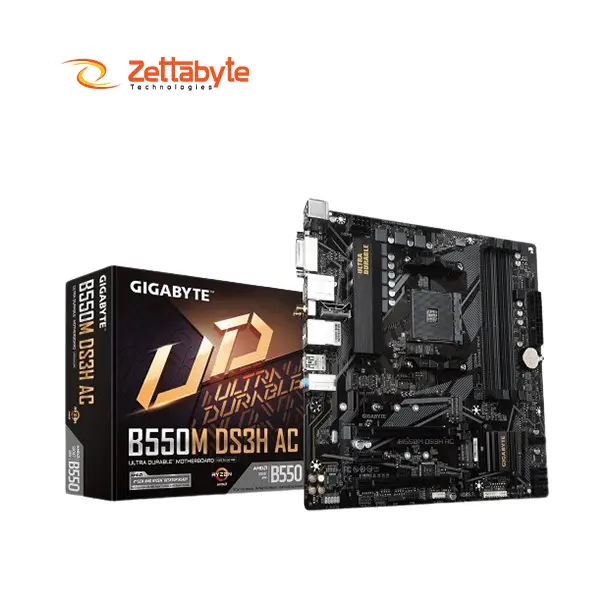

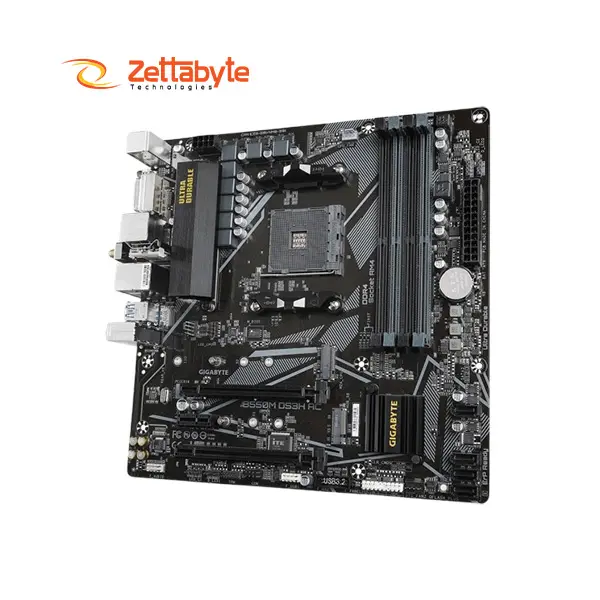

The Gigabyte B550M DS3H AC Wi-Fi, PCIe 4.0 Motherboard is a high-performance motherboard for enthusiasts and professionals alike, requiring maximum output at a highly economical platform for their AMD-based builds. The board supports AMD Socket AM4 and is compatible with 3rd Generation AMD Ryzen processors, including those with Radeon™ Graphics. With the all-mighty B550 chipset in place, the PCIe 4.0 interface genuinely shines with faster data transfer speeds relevant to top performance in gaming and productivity applications. The integrated AC Wi-Fi module 3168 ensures seamless dual-band WLAN connectivity (2.4/5 GHz) with Bluetooth 4.2 support.
Gigabyte B550M DS3H AC doesn't compromise on memory and storage. The motherboard supports DDR4 memories of up to 128 GB in a dual-channel configuration with speeds up to 4266 MHz (OC), keeping memory access very fast for RAM-intensive content. Besides two M.2 connectors, the motherboard has four SATA 6Gb/s ports, giving you plenty of options to use high-speed storage solutions such as PCIe 4.0 and PCIe 3.0 SSDs. In terms of expansion spaces for storage or enhanced computing environments, the board supports RAID 0 and RAID 10 configurations for additional redundancy and speed.

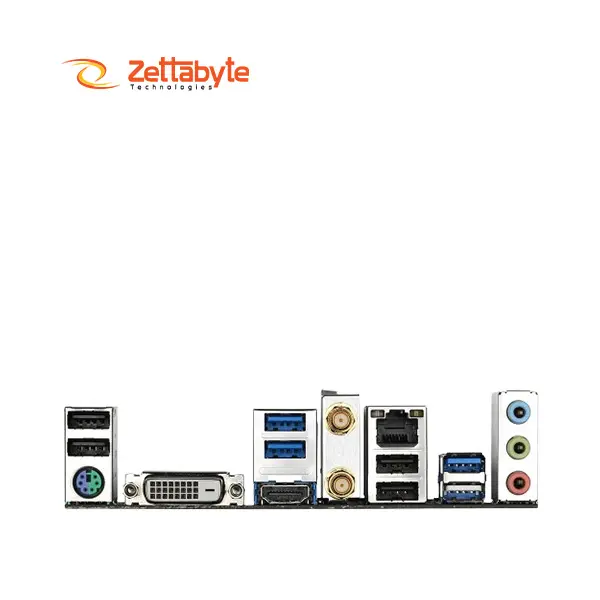

For connectivity, the motherboard comes with quite a few options including Realtek GbE LAN with stable network performance for gaming and professional applications. The video signal can be transferred in high definition through the HDMI 2.1 and DVI-D ports, which is a delight for media-integrated projects or casual gaming. The onboard audio being powered by the Realtek ALC887 audio codec makes sure that the sound quality is maintained very well with 7.1-channel support. If one is looking for additional customization, the RGB header and addressable LED strip header are integrated into the board allowing a personalized aesthetic appeal of your choice that works well with your system design.
You are provided with a 3-year warranty, adding to the robust feature set that makes the Gigabyte B550M DS3H AC Wi-Fi, PCIe 4.0 Motherboard an outstanding pick while building reliable hi-performance machines. Check out the entire range of Zettabyte Technologies for all your tech needs.
