| Brand | Gigabyte |
| Model | Gigabyte B760M GAMING |
| Memory Type | DDR4 |
| Memory MHz | 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules non-ECC Un-buffered DIMM |
| Memory Channel | Dual |
| Memory Slot | 2 |
| Memory Max | 64GB |
| Optane Memory Support | Not Available |
| Chipset Brand | Intel |
| Chipset | Intel B760 |
| Sockets Supported | LGA1700 |
| Built-in Processor | Not Available |
| Supported CPU | 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors |
| Generation | 12th/13th/14th |
| Memory Type | DDR4 |
| Memory Slot | 2 |
| Memory Max. | 64GB |
| M.2/SSD Expansion Slot Details | 2 x M.2 (1 x M.2 connector, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU), 1 x M.2, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)) |
| Graphics | Integrated |
| Graphics Chipset | Intel HD Graphics support |
| Multi-GPU Support | Not Available |
| Audio Chipset | Realtek Audio CODEC, High Definition Audio |
| LAN Chipset | Realtek 2.5GbE LAN chip |
| WiFi | Not Available |
| Bluetooth | Not Available |
| USB Port | 2 x USB 2.0/1.1 ports, 3 x USB 3.2 Gen 1 ports, 1 x USB Type-C port, with USB 3.2 Gen 1 support |
| VGA Port | 1 |
| DVI Port | Not Available |
| HDMI Port | 1 |
| SATA Port | 4 |
| Cable Management | Front |
| Heatsink | Not Available |
| RGB Support | RGB |
| Approx. Power Consumption | 60W |
| Form Factor | Micro-ATX |
| Supported Operating System | Windows 11/ 10 |
| Body Color | Black & Red |
| Form Factor | Micro-ATX |
| Approx_Power_Consumption | 60W |
| Country Of Origin | Taiwan |
| Made in/ Assemble | China |
| Warranty Details | 3 year |

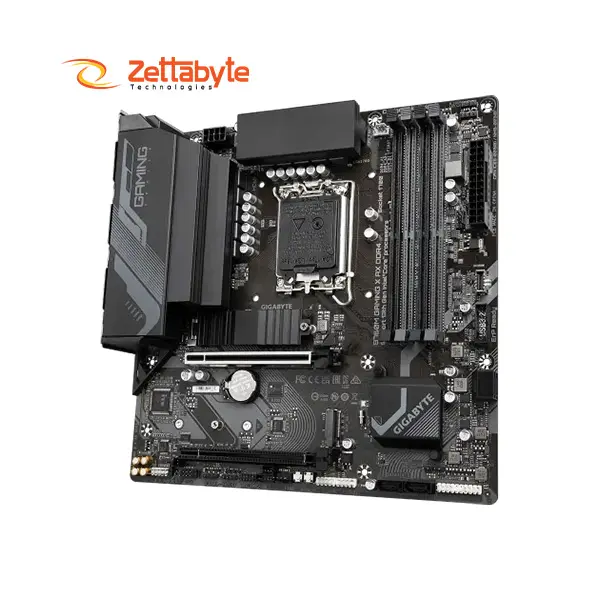

The GIGABYTE B760M GAMING DDR4 is a fully furnished micro-ATX motherboard, which is built for Intel Core 14th, 13th, and 12th generation processors, Pentium Gold, and Celeron CPUs. Extremely potent performances coupled with excellent stability are assured by the B760 chipset paired with the LGA1700 socket for gamers and professionals alike. The motherboard supports Dual-Channel DDR4 memory, with support for frequencies of up to 5333 MT/s (O.C.) with a memory capacity of 64 GB. This allows for fast and responsive multitasking. The Smart Fan 6, with an extremely Power-Efficient and Performance-Driven Hybrid 6 + 2 + 1 Phases Digital VRM Solution and various temperature sensors, will take care of cooling during heavy workloads.
To facilitate ultra-fast storage, the motherboard offers a dual PCIe 4.0 M.2 interface that can support high data transfer speeds and RAID 0, 1, 5, and 10 through four SATA 6 Gb/s ports. Having Realtek 2.5GbE LAN will allow the fastest and most reliable network access and keep the latency out of your gaming, guaranteeing smooth on-screen action. Installing graphics cards has now become a very easy task, with the EZ-Latch PCIe 4.0 x16 slot. Q-Flash Plus offers the option of updating the BIOS without needing a CPU, RAM, or GPU. An RGB LED strip header will provide some cool lighting effects and let the user personalize their gaming setup.

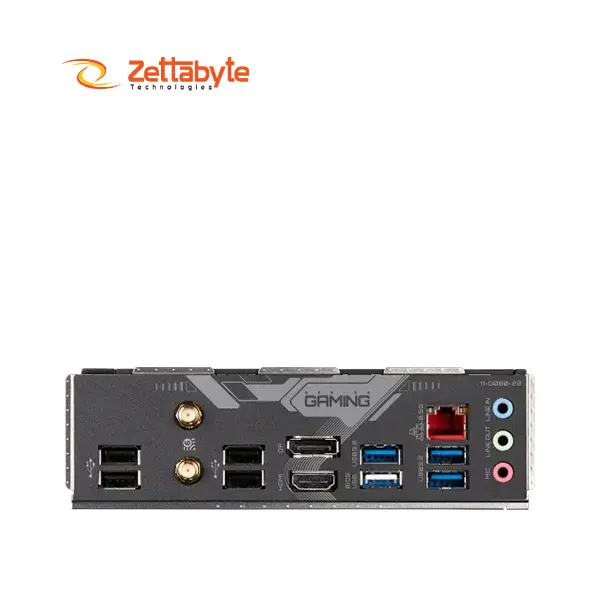

The GIGABYTE B760M GAMING DDR4 has HDMI, DisplayPort, and D-Sub (VGA) outputs, allowing for compatibility with a wide range of displays. USB 3.2 Gen 1, USB Type-C, and USB 2.0 ports are provided for fast and flexible peripheral connections. The build quality, cooling solutions, and ultra-fast connectivity options make it a notch above in gaming, content creation, and working. Go grab your GIGABYTE B760M GAMING DDR4 and get powered up from Zettabyte Technologies!
Are you looking for a reliable Technology Store in Bangladesh? Get the Gigabyte B760M GAMING DDR4 Future-Ready Motherboard for All Devices from Zettabyte Technologies. We provide 100% authentic products, the best prices, and home delivery. Purchase from your nearest Zettabyte store or order online from anywhere in Bangladesh. Enjoy peace of mind with our 14-day return policy. Order now and experience the Zettabyte difference.
The current price of the Gigabyte B760M GAMING DDR4 Compact & Powerful Motherboard is 18,700৳. We have a huge collection of the Gigabyte B760M GAMING DDR4 at the best price. Order today before the price increases!
