| Brand | Gigabyte |
| Model | Gigabyte B760M GAMING X AX DDR4 |
| Memory Type | DDR4 |
| Memory MHz | 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133MHz non-ECC Un-buffered DIMM. |
| Memory Channel | Dual |
| Memory Slot | 4 |
| Memory Max | 128GB |
| Optane Memory Support | Not Available |
| Chipset Brand | Intel |
| Chipset | Intel B760 |
| Sockets Supported | LGA1700 |
| Built-in Processor | Not Available |
| Supported CPU | 13th/14th and 12th Generation Intel Core, Pentium Gold and Celeron Processors. |
| Generation | 12th/13th/14th |
| Memory Type | DDR4 |
| Memory Slot | 4 |
| Memory Max. | 128GB |
| M.2/SSD Expansion Slot Details | 2 x M.2 , ((1 x M.2, type 2280 PCIe 4.0 x4/x2 SSD), (1 x M.2 ,type 22110/2280 PCIe 4.0 x4/x2 SSD )) |
| Graphics | Integrated |
| Graphics Chipset | Intel HD Graphics support |
| Multi-GPU Support | Not Available |
| Audio Chipset | Realtek Audio CODEC |
| LAN Chipset | Realtek 2.5GbE |
| WiFi | Available |
| Bluetooth | Bluetooth 5.3 |
| USB Port | 3 x USB 3.2 Gen 1, 5 x USB 2.0/1.1 |
| VGA Port | Not Available |
| DVI Port | Not Available |
| HDMI Port | 1 |
| SATA Port | 4 |
| Cable Management | Front |
| Heatsink | Not Available |
| RGB Support | RGB |
| RGB Connector | 2 x RGB LED strip headers |
| Approx. Power Consumption | 60W |
| Form Factor | Micro-ATX |
| Supported Operating System | Windows 10 / 11 |
| Body Color | Black |
| Form Factor | Micro-ATX |
| Approx. Power Consumption | 60W |
| Country Of Origin | Taiwan |
| Made in/ Assemble | China |
| Warranty Details | 3 year |

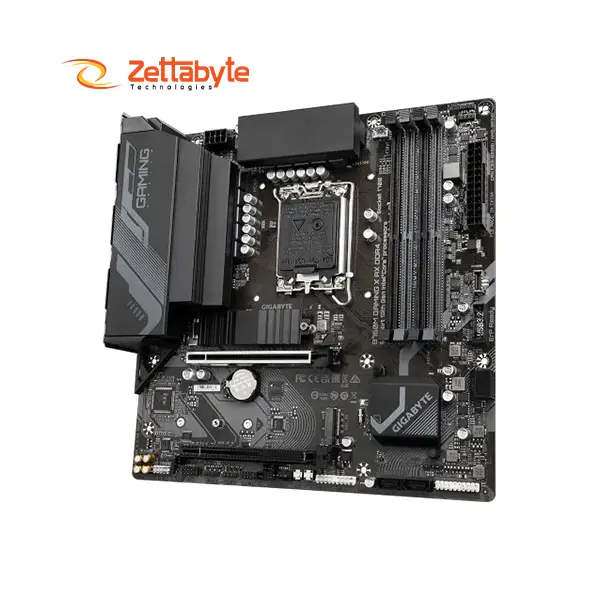

The GIGABYTE B760M GAMING X AX Wi-Fi 6E DDR4 Motherboard is designed to provide extreme performance on computer technology supporting Intel LGA-1700 socket 14th, 13th, and 12th Gen Core, Pentium Gold, and Celeron processors. It's based on the Intel B760 chipset, which means that this Micro-ATX motherboard can support dual DDR4 RAM with a maximum capacity of 128GB at data rates of 5333MT/s (O.C.) and is thus a good candidate for multitasking and overclocking. Graphics cards are easy to install into the EZ-Latch PCIe 4.0 x16 slot with a quick-release mechanism, while the Advanced Thermal Design & M.2 Thermal Guard would ensure power stability and SSD performance.
For the rest of the connectivity options, the motherboard comprises two PCIe 4.0 M.2 slots for speedy storage, four SATA 6Gb/s ports with RAID support, and Wi-Fi 6E + 2.5 GbE LAN for ultra-fast networking. HDMI and DisplayPort give high display resolution, adding entertainment with 7.1 channel Realtek HD audio. Smart Fan 6 technology, combined with multiple temperature sensors and hybrid fan headers with FAN STOP, provides superior cooling performance under heavy workloads. RGB LED strip headers are for customization and making a crazy gaming setup!
An exciting additional feature includes the Q-Flash Plus tool, which allows users to update BIOS without needing to install a CPU, RAM, or GPU, thus making the whole upgrading process painless. The motherboard includes various USB 3.2 ports and USB 2.0 ports for added connectivity. With a 3-year warranty, the GIGABYTE B760M GAMING X AX Wi-Fi 6E DDR4 motherboard is an excellent pick for gamers and PC enthusiasts. Get your attractive offers today for the Zettabyte Technologies-centrally certified fastest motherboard!
Are you Looking for a reliable Technology Store in Bangladesh? Get the Gigabyte B760M GAMING X AX Wi-Fi 6E Future-Ready Motherboard for All Devices from Zettabyte Technologies. We provide 100% authentic products, the best prices, and home delivery. Purchase from your nearest Zettabyte store or order online from anywhere in Bangladesh. Enjoy peace of mind with our 14-day return policy. Order now and experience the Zettabyte difference.
The current price of the Gigabyte B760M GAMING X AX Wi-Fi 6E Compact & Powerful Motherboard is 19,700৳. We have a huge collection of this Gigabyte B760M GAMING PLUS Wi-Fi 6 at the best price. Order today before the price increases!
