Brand | Gigabyte |
Model | Gigabyte B760M H DDR4 |
Memory Type | DDR4 |
Memory MHz | 3200/3000/2933/2666/2400/2133 MHz ECC & non-ECC Un-buffered |
Memory Channel | Dual |
Memory Slot | 2 |
Memory Max | 64GB |
Optane Memory Support | Not Available |
Chipset Brand | Intel |
Chipset | Intel B760 |
Sockets Supported | LGA1700 |
Built-in Processor | Not Available |
Supported CPU | 12th / 13th / 14th Generation Intel Core i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Gold processors/ Intel Celeron processors. |
Generation | 12th/13th/14th |
Memory Type | DDR4 |
Memory Slot | 2 |
Memory Max. | 64GB |
M.2/SSD Expansion Slot Details | 2 x M.2 (1 x M.2 M key type 2280 support PCIe 4.0 x4/x2 SSD), (1 x M.2 M key type 2280 support PCIe 4.0 x4/x2 SSD) |
Graphics | Integrated |
Graphics Chipset | Intel HD Graphics support |
Multi-GPU Support | Not Available |
Audio Chipset | Realtek Audio CODEC High Definition Audio |
LAN Chipset | Realtek GbE LAN chip |
WiFi | Not Available |
Bluetooth | Not Available |
USB Port | 4 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0 Type-A |
VGA Port | 1 |
DVI Port | Not Available |
HDMI Port | 1 |
SATA Port | 4 x SATA |
Cable Management | Front |
Heatsink | Not Available |
RGB Support | RGB |
RGB Connector | 1 x RGB LED strip header |
Approx. Power Consumption | 60W |
Form Factor | Micro-ATX |
Supported Operating System | Windows 10/ 11 |
Body Color | Black |
Form Factor | Micro-ATX |
Approx. Power Consumption | 60W |
Country Of Origin | Taiwan |
Made in/ Assemble | China |
Warranty Details | 3 year |

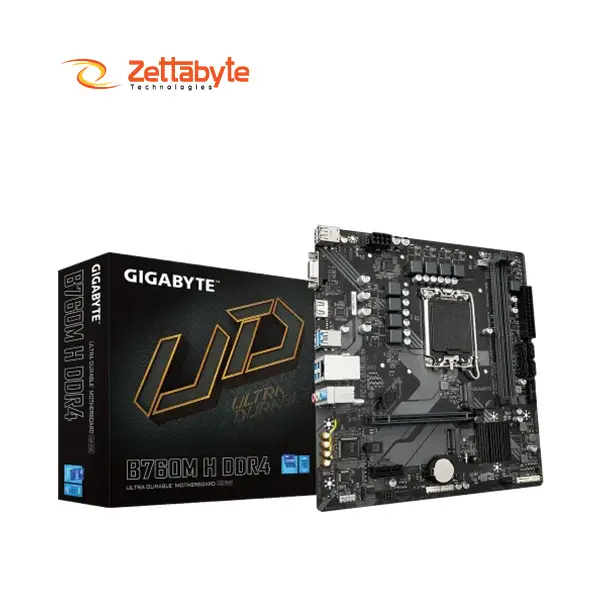

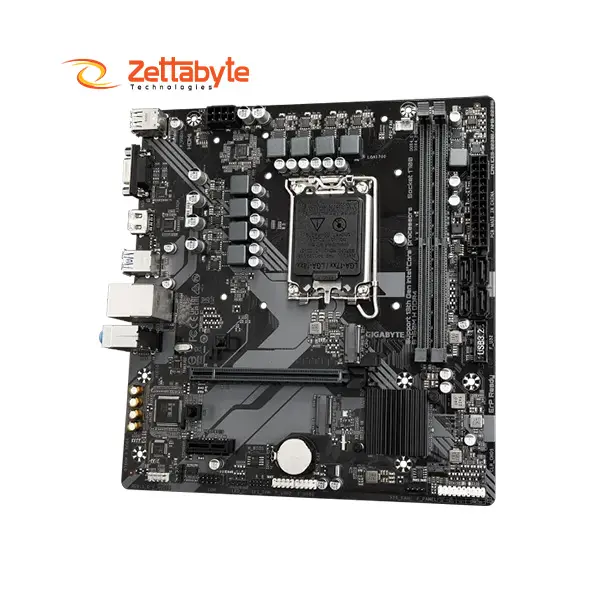

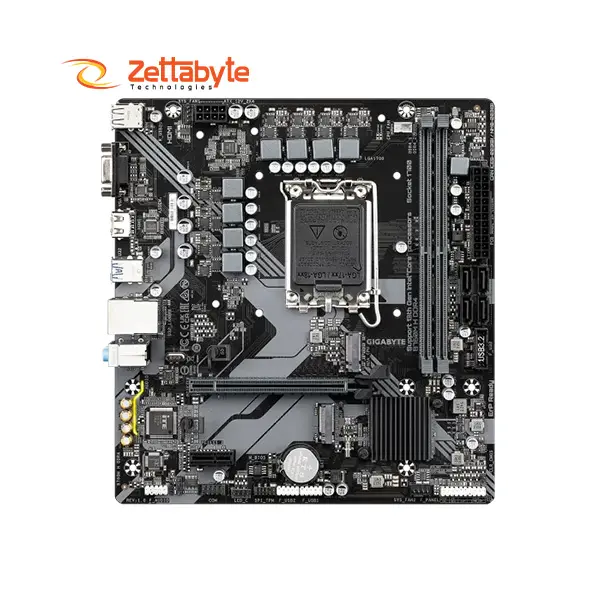

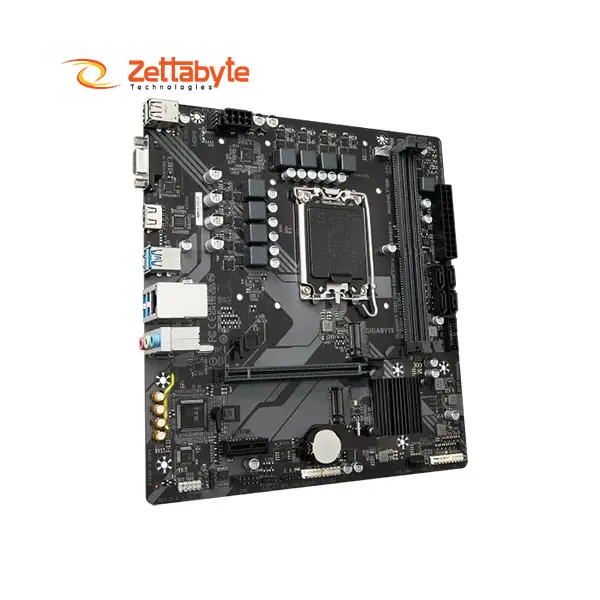

This GIGABYTE B760M H DDR4 motherboard is capable of running Intel 12th, 13th, and 14th Generation Core, Pentium, and Celeron the most performance-centric but having awesome stability at the same time. The motherboard follows the Intel B760 chipset and LGA1700 socket with the assurance of complete compatibility with future CPUs. This wide range of specifications makes the motherboard a good box for multitasking and gaming purposes. A dual-channel DDR4 memory works at the rate of 3200MHz and has a ceiling of 64GB capacity. The Hybrid Digital VRM Design, comprising 6+1+1 Phases, makes power delivery very strong and efficient in its arrangement. A trailing RGB LED strip header allows users to easily do customization in vivid lighting effects.
GIGABYTE B760M H DDR4 motherboard: High-speed storage and connectivity via 2 PCIe 4.0 x4 M.2 slots and 4 SATA 6Gb/s ports, perfectly designed for quick data transfers and flexible storage expansions. The Realtek GbE LAN chip ensures a stable and fast connection to the network, making it reasonable for gaming, streaming, and online work. This motherboard has even more expansion options with a PCIe 4.0 x16 slot and a PCIe 3.0 x1 slot, which makes it really expandable for all the graphics and peripheral needs. Smart Fan 6 conveys that it continues to read the system temperature and optimizes cooling by being available in maximum performance.
Additionally, it comes with HDMI and VGA (D-Sub), ensuring integration with several USB 3.2 Gen 1 and USB 2.0 ports for making the mandatory connectivity of this motherboard-to-mod device possible. This comes with an HD audio system called Realtek and 7.1 channel support. It will make a highly rich and immersive soundbank available for entertainment and gaming. Windows 10 and Windows 11 are the operating systems that this motherboard is built to operate on for reliability, efficiency, and better performance. Buy it here now: the GIGABYTE B760M H DDR4 Motherboard for Zettabyte Technologies.
