| Brand | Asus |
| Model | Asus PRIME A520M-A II |
| Memory Type | |
| Memory MHz | 4866(OC)/4800(OC)/4600(OC)/4466(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200/3000/2800/2666/2400/2133 MHz, Un-buffered Memory |
| Memory Channel | Dual |
| Memory Slot | |
| Memory Max | 128GB |
| Optane Memory Support | Not Available |
| Chipset Brand | AMD |
| Chipset | AMD A520 |
| Sockets Supported | AM4 |
| Built-in Processor | Not Available |
| Supported CPU | AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors |
| Generation | Not Applicable |
| Memory Type | DDR4 |
| Memory Slot | 4 |
| Memory Max. | 128GB |
| M.2/SSD Expansion Slot Details | 1 x M.2 (M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)) |
| Graphics | Integrated |
| Graphics Chipset | Integrated With Processor |
| Multi-GPU Support | Not Available |
| Audio Chipset | Realtek ALC887/897 |
| LAN Chipset | Realtek 1Gb Ethernet |
| WiFi | Not Available |
| Bluetooth | Not Available |
| USB Port | 4 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0 Type-A |
| VGA Port | Not Available |
| DVI Port | Not Available |
| HDMI Port | 1 |
| SATA Port | 4 x SATA |
| Cable Management | Front |
| Heatsink | Not Available |
| RGB Support | RGB |
| RGB Connector | 2 x AURA RGB headers |
| Approx. Power Consumption | |
| Form Factor | |
| Supported Operating System | Windows 10 |
| Body Color | Black |
| Form Factor | Micro-ATX |
| Approx_Power_Consumption | 60W |
| Approx. Power Consumption | 60W |
| Country Of Origin | Taiwan |
| Made in/ Assemble | China |
| Warranty Details | 3 Years Replacement Warranty |

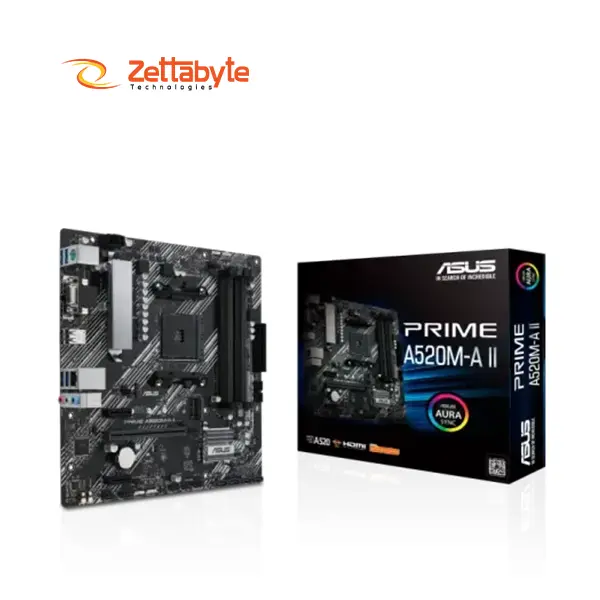

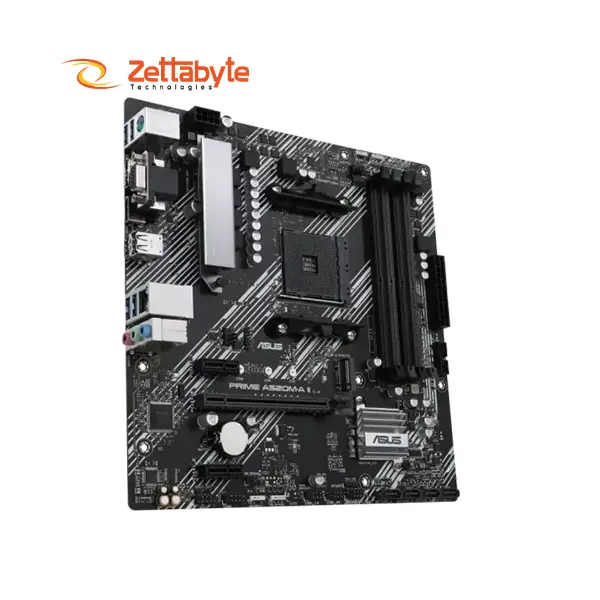

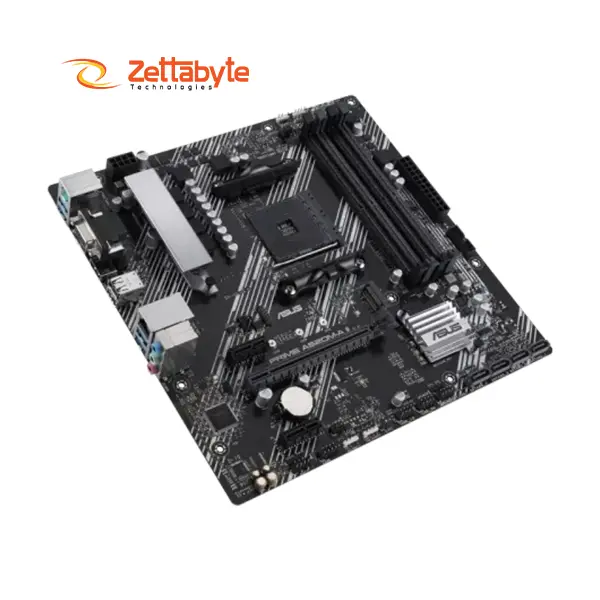

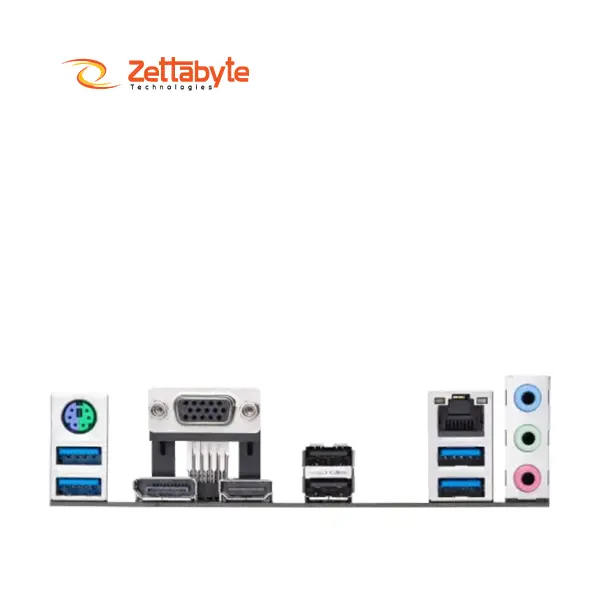

The ASUS PRIME A520M-A II AM4 Micro ATX Motherboard is an outstanding solution when you want to construct or rebuild your personal computer. This product provides exceptional performance and stability through its support of the Ryzen 5000 and 4000 G-Series in addition to the 3000 Series for AMD processors. The motherboard includes a dual-channel DDR4 memory system that allows users to add 128GB of memory and guarantees optimized multitasking and rapid data retrieval performance. Through its video connection methods PRIME A520M-A II provides HDMI as well as DisplayPort and D-Sub, which permits users to configure different display arrangements. This model contains one PCIe 3.0 x16 slot and two PCIe 3.0 x1 slots for graphics cards and expansion cards,s respectively. The robust cooling system of this board incorporates two components: a PCH heatsink combined with a VRM heatsink to prevent system overheating under heavy workloads. The Realtek 1 Gb Ethernet port available on this board provides stable high-speed internet connectivity. ASUS 5X Protection III implements DIGI+ VRM together with LANGuard, which ensures durability through overvoltage protection. The board allows for customization options through its RGB header features, including Aura Sync RGB and Addressable Gen 2 RGB ports. The ASUS PRIME A520M-A II provides users with superior system capabilities coupled with longevity guarantees through a 3-year protection plan.
Are you looking for a reliable technology store in Bangladesh? Get the ASUS PRIME A520M-A II AM4 Micro ATX Motherboard from Zettabyte Technologies. We provide 100% authentic products at the best price and with home delivery. Purchase from your nearest Zettabyte store or order online from anywhere in Bangladesh. Enjoy peace of mind with our 14-day return policy. Order now and experience the Zettabyte difference.
The current price of the ASUS PRIME A520M-A II AM4 Micro ATX Motherboard is ৳11,200. We have a huge collection of this ASUS PRIME A520M-A II at the best price. Order today before the price increases!
