| Brand | Asus |
| Model | Asus Pro B660M-C D4-CSM |
| Memory MHz | 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz |
| Memory Channel | Dual |
| Memory Max | 128GB |
| Optane Memory Support | Yes |
| Chipset Brand | Intel |
| Chipset | Intel B660 |
| Sockets Supported | LGA1700 |
| Built-in Processor | Not Available |
| Supported CPU | Intel Core, Pentium Gold and Celeron Processors |
| Generation | 12th/13th |
| Memory Type | DDR4 |
| Memory Slot | 4 |
| Memory Max. | 128GB |
| M.2/SSD Expansion Slot Details | 2 x M.2 (1 x M.2, Type 2242/2260/2280, 12th Gen processors support PCIe 4.0 x4 mode), (1 x M.2, type 2242/2260/2280, supports PCIe 4.0 x4) |
| Graphics | Integrated |
| Graphics Chipset | Integrated With Processor |
| Multi-GPU Support | Not Available |
| Audio Chipset | Realtek 7.1 Surround Sound High Definition Audio |
| LAN Chipset | Intel 1Gb Ethernet |
| WiFi | Not Available |
| Bluetooth | Not Available |
| USB Port | 2 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0 Type-A |
| VGA Port | 1 |
| DVI Port | Not Available |
| HDMI Port | 1 |
| SATA Port | 4 x SATA |
| Cable Management | Front |
| Heatsink | Not Available |
| RGB Support | Not Available |
| RGB Connector | Not Available |
| Supported Operating System | Windows 11/ 10 |
| Body Color | Green |
| Form Factor | Micro-ATX |
| Approx_Power_Consumption | 65W |
| Approx. Power Consumption | 65W |
| Country Of Origin | Taiwan |
| Made in/ Assemble | China |
| Warranty Details | 3 Years Replacement Warranty |

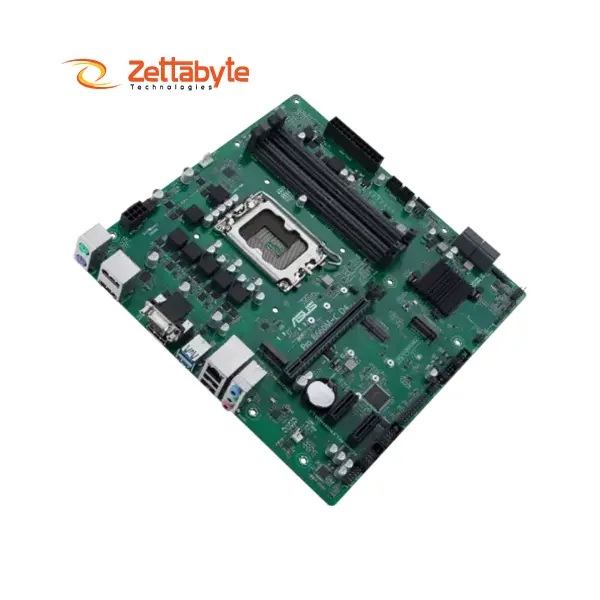

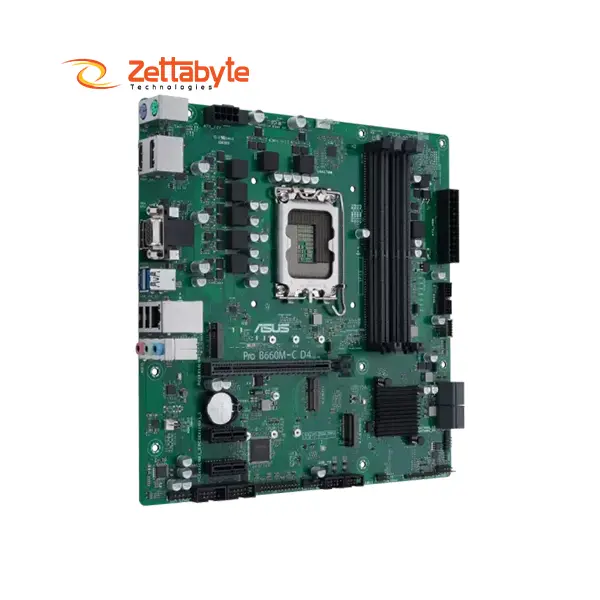

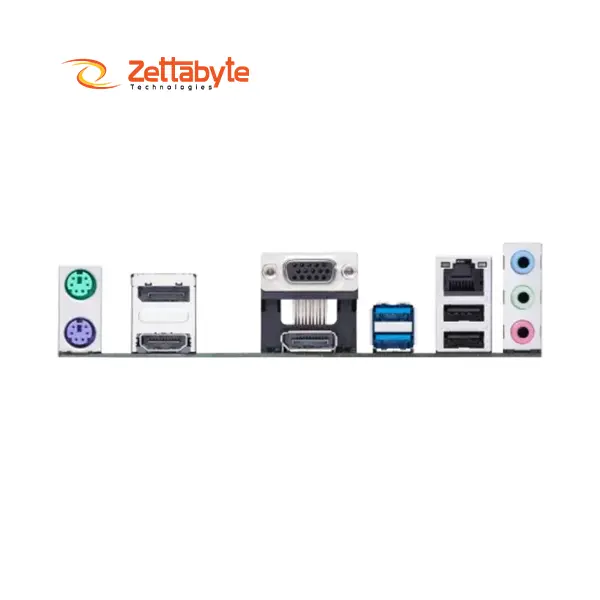

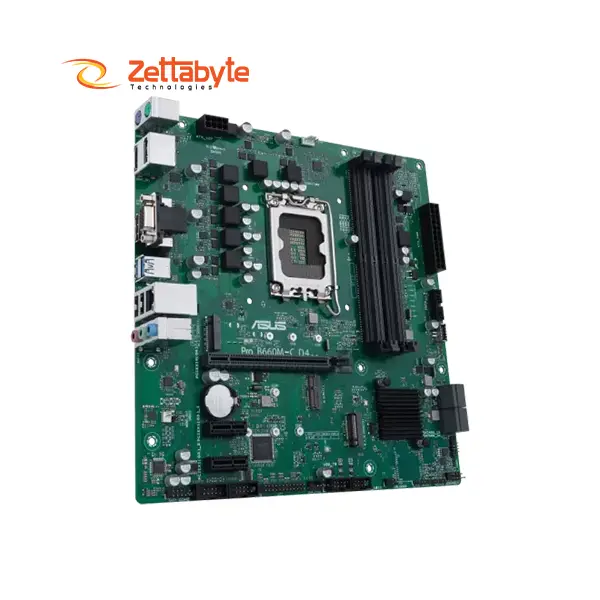

The ASUS Pro B660M-C D4-CSM Powerful Intel B660 Chipset Motherboard is a business-class solution optimized for performance, reliable operation, and secure working environments. The Intel B660 chipset that powers this ASUS Motherboard allows it to support Intel 14th/13th/12th Gen Core Professionals, Celeron, and Pentium Gold processors via the LGA1700 socket. It houses four DDR4 DIMM slots with support for up to 128GB memory capacity-and an overclock potential of 5000MHz. It provides a flexible storage configuration accommodating high-speed SSDs and regular drives through dual M.2 slots and four SATA 6 Gb/s ports. Expansion support is guaranteed through the PCIe 4.0 x16 slot and two PCIe 3.0 x1 slots. More advanced users will appreciate extensive connectivity options, such as USB 3.2 Gen 1 Type-A and Type-C, HDMI, DisplayPort, D-Sub, and Intel 1Gb Ethernet with ASUS LANGuard.
This ASUS Motherboard is unique in that it incorporates long-term durability features such as ASUS Self-Recovering BIOS and Anti-Moisture Coating, and 24-seven reliability and overcurrent protection. A TPM IC onboard and IT management ability via ASUS Control Center Express (ACCE) make that an added attractiveness in professional environments. The Realtek 7.1 Surround Sound audio codec provides excellent sound, with the combo of fan headers and Q-LED Core being very easy to monitor and cool. The micro ATX form factor is advantageous for compact builds while not sacrificing performance. Whether you are building a business PC or upgrading a corporate setup, this ASUS Motherboard is a secure, stable, and energy-efficient solution. Get yours now from ZettaByte Technologies.
Are you looking for a reliable Technology Store in Bangladesh?ASUS Pro B660M-C D4-CSM Efficient PCIe 4.0 Expansion Motherboard for All Devices from Zettabyte Technologies. We provide 100% authentic products, the best prices, and home delivery. Purchase from your nearest Zettabyte store or order online from anywhere in Bangladesh. Enjoy peace of mind with our 14-day return policy. Order now and experience the Zettabyte difference.
The ASUS Pro B660M-C D4-CSM Secure TPM Header Support Motherboard price is ৳16,300. We have a huge collection of ASUS Pro B660M-C D4-CSM Powerful USB 3.2 Connectivity Motherboard at the best price. Order today before the price increases!
