| Brand | MSI |
| Model | MSI H510M-A PRO |
| Part No | LGA1200 Socket 10th/ 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors. |
| Memory Type | DDR4 |
| Memory MHz | 3200(MAX) / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz |
| Memory Channel | Dual |
| Memory Slot | 2 |
| Memory Max | 64GB |
| Optane Memory Support | Not Available |
| Chipset Brand | Intel |
| Chipset | Intel H510 |
| Sockets Supported | LGA1200 |
| Built-in Processor | Not Available |
| Supported CPU | Intel Core i9/ i7/ i5/ i3/ Pentium Gold/ Celeron Processors |
| Generation | 10th/11th |
| Memory Type | DDR4 |
| Memory Slot | 2 |
| Memory Max. | 64GB |
| M.2/SSD Expansion Slot Details | 2 x M.2 (1 x M.2 (Supports up to PCIe 3.0 x4, Supports SATA 6Gb/s, Supports 2242/ 2260/ 2280 storage devices), (1x M.2 slot with E key for WiFi (PCIe) module only)) |
| Graphics | Integrated |
| Graphics Chipset | Integrated With Processor |
| Audio Chipset | Realtek ALC897 |
| LAN Chipset | Intel I219V Gigabit |
| WiFi | Not Available |
| Bluetooth | Not Available |
| USB Port | 3 x USB 3.2 Gen 1 Type-A, 5 x USB 2.0 |
| VGA Port | 1 |
| DVI Port | Not Available |
| HDMI Port | 1 |
| SATA Port | Yes |
| Cable Management | Front |
| Heatsink | Not Available |
| RGB Support | Not Available |
| RGB Connector | Not Applicable |
| Approx. Power Consumption | 60W |
| Form Factor | Micro-ATX |
| Supported Operating System | Windows 10 64-bit |
| Body Color | Black |
| Form Factor | Micro-ATX |
| Approx_Power_Consumption | 60W |
| Approx. Power Consumption | 60W |
| Country Of Origin | Taiwan |
| Made in/ Assemble | China |
| Warranty Details | 3 year |

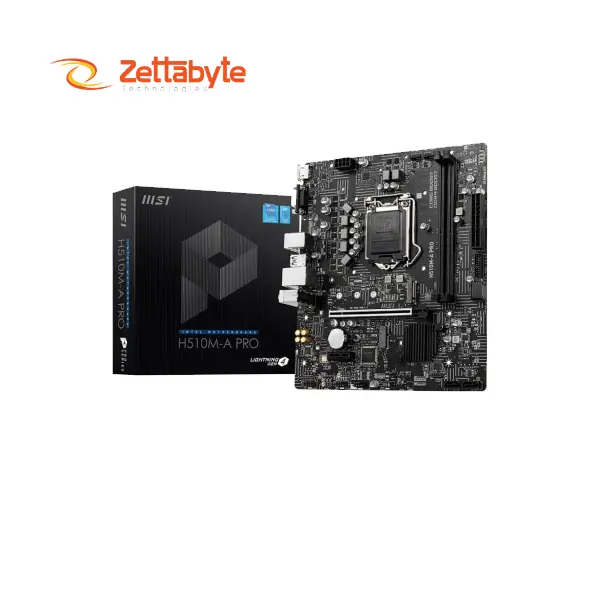

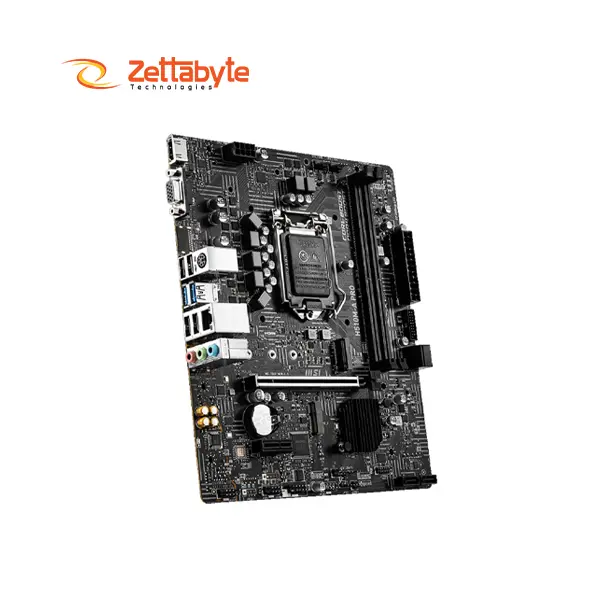

The Motherboard MSI H510M-A PRO is a compact yet strong motherboard for reliable overall performance in an Intel 10th/11th Gen support environment. Designed with the Intel H510 chipset, this MSI Motherboard features support for both Core processors and Pentium Gold and Celeron processors to cap off its versatility. Don't struggle if you want to be compact: mATX case style builds cry for this dimension. Allow it to run as much as 64GB of DDR4 RAM with speeds of up to 3200MHz for 11th Gen Intel CPUs. The enhancement of dual-channel memory architecture through this board promotes superb multitasking and better system performance. Additionally, MSI H510M-A PRO has one PCIe x16 slot (supports PCIe 4.0 with 11th Gen Intel CPUs) and one PCIe x1 slot, for expansion purposes to high-performance components.

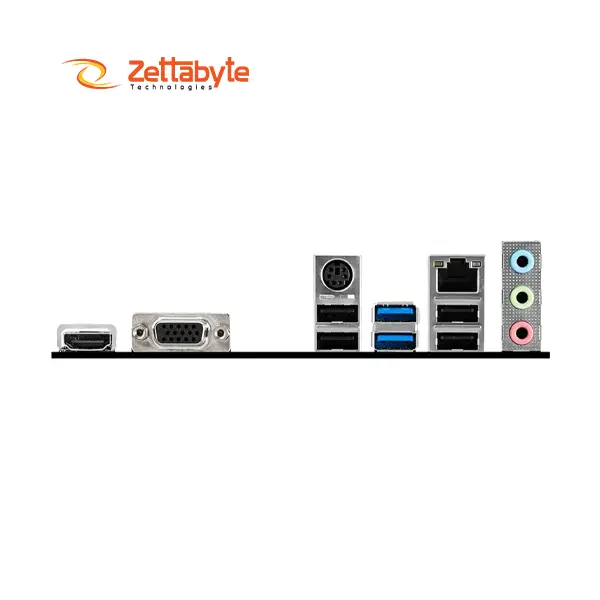

For graphics, this MSI Motherboard additionally supports an HDMI 2.0b port for 4K at 60Hz and VGA output for legacy displays. Four SATA 6Gb/s connectors and an M.2 slot for slalom storage speed complete the picture. Be connected with high-speed USB ports (USB 3.2 Gen 1), Intel I219V 1 Gbps LAN for a stable connection, and 7.1 channel HD audio on this motherboard, because work and fun go together. The MSI H510M-A PRO Motherboard also contains a TPM connector to safeguard systems and is backed by a three-year warranty. Find your authentic MSI Motherboard solution at ZettaByte Technologies, your trusted source for quality components.
Are you looking for a reliable Technology Store in Bangladesh? MSI H510M-A PRO Compact Micro-ATX Design Motherboard for All Devices from Zettabyte Technologies. We provide 100% authentic products, the best prices, and home delivery. Purchase from your nearest Zettabyte store or order online from anywhere in Bangladesh. Enjoy peace of mind with our 14-day return policy. Order now and experience the Zettabyte difference.
MSI H510M-A PRO Durable High-Speed USB Ports Motherboard price is ৳9,300. We have a huge collection of MSI H510M-A PRO Products at the best price. Order today before the price increases!
