| Brand | Gigabyte |
| Model | Gigabyte B760M DS3H AX (Wi-Fi 6E) |
| Memory Type | DDR5 |
| Memory MHz | 7600(O.C.)/ 7400(O.C.)/ 7200(O.C.)/ 7000(O.C.)/ 6800(O.C.)/ 6600(O.C.)/ 6400(O.C.)/ 6200(O.C.)/ 6000(O.C.)/ 5800(O.C.)/ 5600(O.C.)/ 5400(O.C.)/ 5200(O.C.)/ 4800/ 4000MHz non-ECC & Un-buffered Memory. |
| Memory Channel | Dual |
| Memory Slot | 4 |
| Memory Max | 192GB |
| Optane Memory Support | Not Available |
| Chipset Brand | Intel |
| Chipset | Intel B760 |
| Sockets Supported | LGA1700 |
| Built-in Processor | Not Available |
| Supported CPU | Support for the 13th/14th and 12th Generation Intel Core, Pentium Gold and Celeron Processors |
| Generation | 12th/13th/14th |
| Memory Type | DDR5 |
| Memory Slot | 4 |
| Memory Max. | 192GB |
| M.2/SSD Expansion Slot Details | 2 x M.2 (1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU), 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)) |
| Graphics | Integrated |
| Graphics Chipset | Intel HD Graphics support |
| Multi-GPU Support | Not Available |
| Audio Chipset | Realtek Audio CODEC |
| LAN Chipset | Realtek 2.5GbE LAN chip |
| WiFi | Yes |
| Bluetooth | Bluetooth 5.3 |

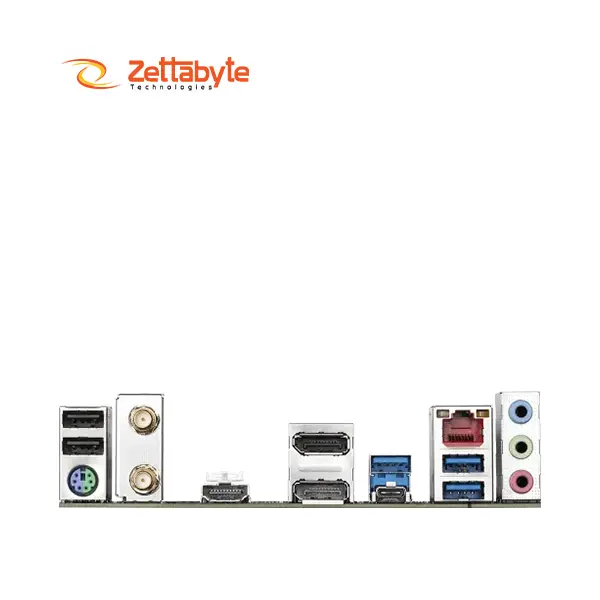

| USB Port | 2 x USB 2.0/1.1, 3 x USB 3.2 Gen 1, 1 x USB Type-C, with USB 3.2 Gen 2 support |
| VGA Port | Not Available |
| DVI Port | Not Available |
| HDMI Port | 1 |
| SATA Port | 4 x SATA |
| Cable Management | Front |
| Heatsink | Yes |
| RGB Support | RGB |
| RGB Connector | 1 x RGB LED strip header |
| Approx. Power Consumption | 60W |
| Form Factor | Micro-ATX |
| Supported Operating System | Windows 11, 10 |
| Body Color | Black |
| Form Factor | Micro-ATX |
| Approx_Power_Consumption | 60W |
| Approx. Power Consumption | 60W |
| Country Of Origin | Taiwan |
| Made in/ Assemble | China |
| Warranty Details | 3 year |

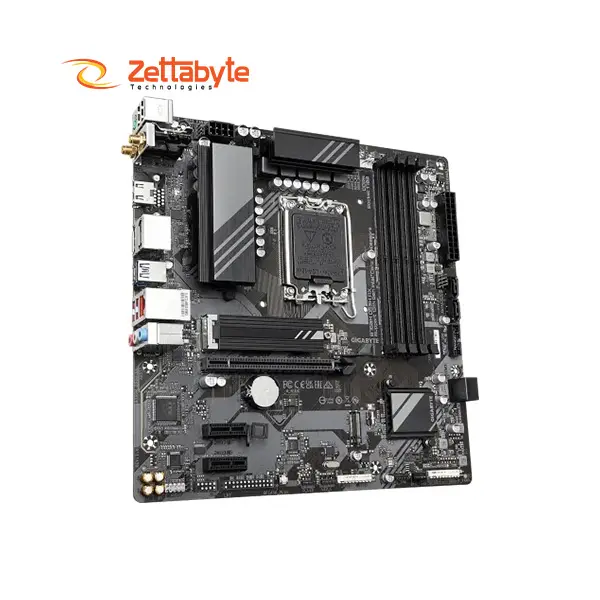

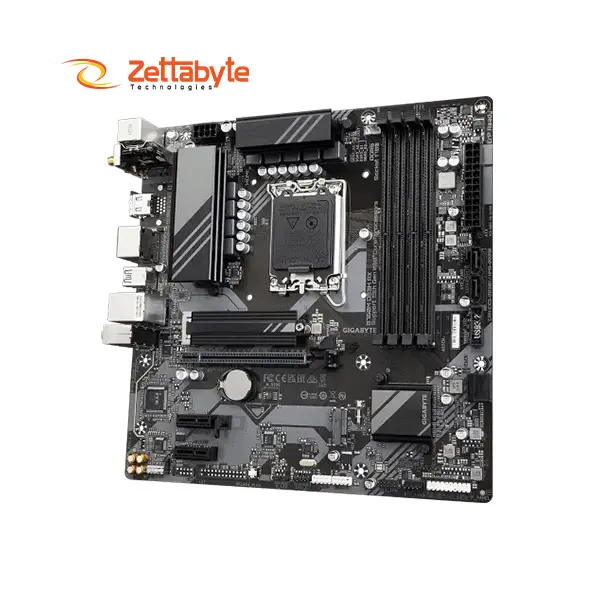

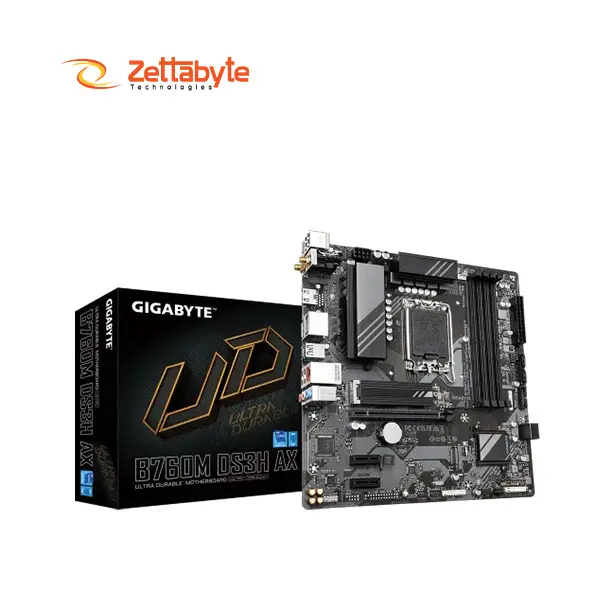

Gigabyte's B760M DS3H AX Wi-Fi 6E DDR5 Gaming Motherboard is made to provide great performance and versatility in your computing life. This motherboard is future-proof with the use of Its Intel B760 chipset, which now provides support for the ultra-modern processors Intel 12, 13, and 14 generations. This mostly ensures that the motherboard extends compatibility with many of Intel's strongest processors. Besides that, the board gives you four DDR5 memory slots, boasting speeds of up to 7600MHz (OC) memory with which to enjoy an expanded memory capacity of up to 192 GB. Simultaneously, it features Wi-Fi 6E and Bluetooth 5.3, thereby offering very fast wireless connectivity for gaming and entertainment streamers. The motherboard also comes up with quite a variety of storage options with two PCIe 4.0 SSD-compatible M.2 slots and four SATA connectors to have a well-balanced combination of both high-speed data transfer and big storage space.
While the ultimate in Intel HD graphics support for full visual performance is on the Gigabyte B760M DS3H AX, users can choose between HDMI output or DisplayPort output to work with the different types of displays that most people use. The motherboard also features Realtek 2.5GbE LAN, which provides users with steady, fast connections for an online gaming session and transferring huge amounts of data. Expansion-wise, there is one x16 PCIe 4.0 slot for high-performance GPUs and two PCIe 3.0 x1 slots for additional peripherals. RAID 0, 1, 5, and 10 are supported for data redundancy and speed improvement for storage configurations just perfect for users who are into gaming, as well as content creators, who need solid arrays.
On Gigabyte's B760M DS3H AX, the CPU can be fitted with extra cooling and performance options. Even the most strenuous tasks, such as gaming and video editing, will not stress out the entire system because of a 6+2+1 phase hybrid digital VRM design. It also has all customizable RGB lighting support and a Latch-free design, EZ-Latch PCIe 4.0x16 for easy removal. You can be sure about the durability of this motherboard since it guarantees three years of support, forever for your gaming and working endeavors. Do you need such a high-performance motherboard, at the same time, packed with rich features offering contemporary connectivity? Then the Gigabyte B760M DS3H AX Wi-Fi 6E DDR5 Gaming Motherboard is for you. To know more about it and grab the best deals, click ZettaByte Technologies.
Are you looking for a reliable Technology Store in Bangladesh? Get the Gigabyte B760M DS3H AX Wi-Fi 6E Best Intel Motherboard for All Devices from Zettabyte Technologies. We provide 100% authentic products, the best prices, and home delivery. Purchase from your nearest Zettabyte store or order online from anywhere in Bangladesh. Enjoy peace of mind with our 14-day return policy. Order now and experience the Zettabyte difference.
The current price of the Gigabyte B760M DS3H AX Wi-Fi 6E Best Budget Motherboard is 17,300৳. We have a huge collection of the Gigabyte B760M DS3H AX at the best price. Order today before the price increases!
