| Brand | Gigabyte |
| Model | Gigabyte B760M D3HP |
| Memory Type | DDR5 |
| Memory MHz | 5600/ 5200/ 4800/ 4400 MHz ECC, non-ECC, Un-buffered DIMM |
| Memory Channel | Dual |
| Memory Slot | 4 |
| Memory Max | 256GB |
| Optane Memory Support | Not Available |
| Chipset Brand | Intel |
| Chipset | Intel B760 |
| Sockets Supported | LGA1700 |
| Built-in Processor | Not Available |
| Supported CPU | 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors |
| Generation | 12th/13th/14th |
| Memory Type | DDR5 |
| Memory Slot | 4 |
| Memory Max. | 256GB |
| M.2/SSD Expansion Slot Details | 2 x M.2 (1 x M.2 M key type 2280 support PCIe 4.0 x4/x2 SSD, 1 x M.2 M key type 2280 PCIe 4.0 x4/x2 SSD) |
| Graphics | Integrated |
| Graphics Chipset | Intel HD Graphics support |
| Multi-GPU Support | Not Available |
| Audio Chipset | Realtek Audio CODEC |
| LAN Chipset | Realtek GbE LAN |
| WiFi | Not Available |
| Bluetooth | Not Available |
| USB Port | 3 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0/1.1 Type-A |
| VGA Port | 1 |
| DVI Port | Not Available |
| HDMI Port | 1 |
| SATA Port | 4 x SATA |
| Cable Management | Front |
| Heatsink | Not Available |
| RGB Support | ARGB |
| RGB Connector | 1 x addressable LED strip header, 1 x RGB LED strip header |
| Approx. Power Consumption | 60W |
| Form Factor | Micro-ATX |
| Supported Operating System | Window 10, 11 |
| Body Color | Black |
| Form Factor | Micro-ATX |
| Approx_Power_Consumption | 60W |
| Approx. Power Consumption | 60W |
| Country Of Origin | Taiwan |
| Made in/ Assemble | China |
| Warranty Details | 3 year |

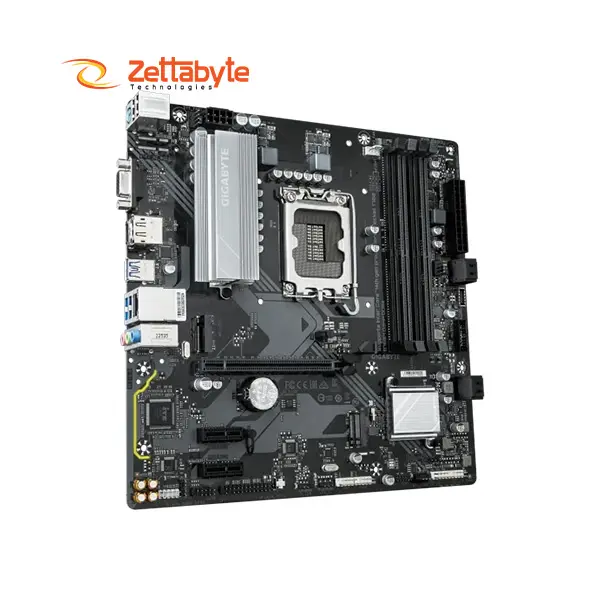

The Gigabyte B760M D3HP DDR5 Best Intel Gaming Motherboard is a powerful motherboard built for the gaming community and gaming professionals. Being based on Intel's B760 chipset, it provides compatibility for the latest 12th, 13th, and 14th generations of Intel Core, Pentium Gold, or Celeron processors-further demonstrating the diversity of Intel CPUs it can work with.This also means that it allows for DDR5 memory, which can speed up to 5600MHz, and accommodates a total of four DIMM slots that can hold up to 256GB of RAM. This motherboard is indeed flexible when it comes to memory expansion: it does accommodate ECC un-buffered DIMM and Extreme Memory Profile (XMP) modules, which further ensure high performance and stability in the most complex applications.

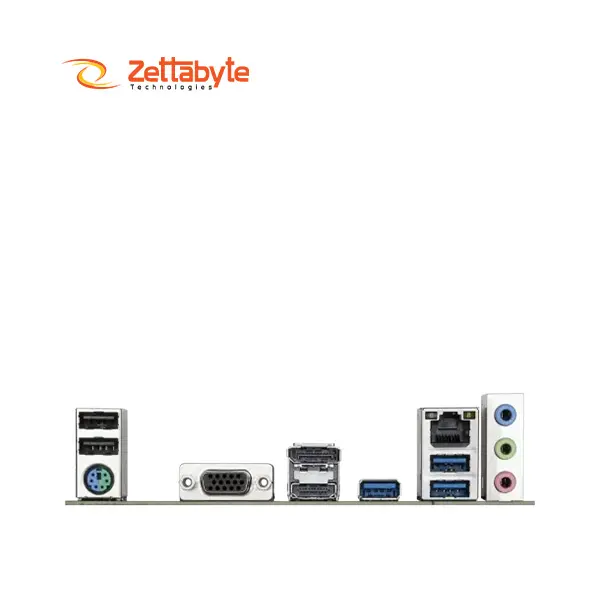

With Gigabyte B760m d3hp, connectivity becomes a vibrant word. The motherboard gets loaded with two M.2 slots with PCIe 4.0 x4/x2 SSDs and four SATA 6Gb/s ports for fast, reliable data availability, with the freedom to expand into different avenues.Comes with a Realtek GbE LAN chipset for a stable wired connection, it supports different video outputs, too, HDMI and DisplayPort--with resolution levels up to 4096x2160@60Hz for HDMI and 4096x2304@60Hz for DisplayPort. It offers a D-Sub port to bring the maximum resolution out to 1920x1200@60Hz, which is due to the versatility of this motherboard in use.
Another great feature of the B760M D3HP DDR5 from Gigabyte includes RGB effects that exist through RGB Fusion and sync your system, possibly through ARGB and RGB connectors. RAID 0, 1, 5, and 10 are supported for data redundancy and performance enhancements.Q-Flash and Q-Flash Plus support enable easy BIOS management for the user in terms of updating the BIOS without the need to remove the CPU or memory in place. For everything, the size taken into consideration, that is micro-ATX form factor, delivers an exciting mix of performance and reliability for both gamers and professionals.
Visit ZettaByte Technologies, your one-stop premium destination for the latest and greatest technology products, and find the Gigabyte B760M D3HP DDR5 Best Intel Gaming Motherboard among hundreds of other amazing tech products the store has to offer.
Are you looking for a reliable Technology Store in Bangladesh? Get the Gigabyte B760M D3HP DDR5 Best Micro-ATX Motherboard for All Devices from Zettabyte Technologies. We provide 100% authentic products, the best prices, and home delivery. Purchase from your nearest Zettabyte store or order online from anywhere in Bangladesh. Enjoy peace of mind with our 14-day return policy. Order now and experience the Zettabyte difference.
The current price of the Gigabyte B760M D3HP DDR5 Fast & Reliable Motherboard is 16,200৳. We have a huge collection of the Gigabyte B760M DS3H AX Wi-Fi 6E at the best price. Order today before the price increases!
